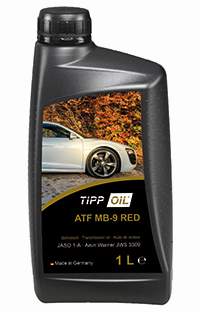

ATF MB-9 Red

ATF MB-9 Red ist ein Öl für Automatikgetriebe auf Basis von synthetischen Ölen.

ATF MB-9 Red Produktdatenblatt
ATF MB-9 Red Sicherheitsdatenblatt

Description

TIPP-OIL ATF MB-9 is an Oil for automatic transmission on the Basis of synthetic Oils. ATF MB-9 was specially developed for the specified specifications and applications. It provides thanks to its special additives for maximum lubrication and protection against wear. ATF MB-9 is a universal ATF (Automatic Transmission Fluid) of the latest Generation for all of the automatic transmissions with and without controlled torque Converter lockup clutch (so-called gear-clutch lock-up clutch).

Instructions for use

TIPP-OIL ATF MB-9 is particularly suitable for use in modern 7-speed automatic transmissions from Mercedes-Benz. It allows a maximum wear protection in all operating conditions. The operating instructions of the motor vehicle and engine manufacturers are to be observed.

Quality classification specification

  • JASO 1-A
  • Aisin Warner JWS3309

Recommendation

  • BMW 5er | BMW 7045E (3er) | BMW LA 2634 | BMW LT71141
  • Ford FNR5 | Ford XL-12 transfer gearbox
  • Distributor gear GM AutoTrak II
  • Honda ATF Z-1
  • Hyundai/Kia JWS3314 | Hyundai/Kia JWS3317
  • Hyundai/Kia SP-II | Hyundai/Kia SP-III
  • Idemitsu K17
  • Kia Red-1
  • Mazda ATF-M III | Mazda ATF-MV
  • MB 236.11 | MB236.10 | MB236.9 | MB236.81
  • MB236.2 | MB236.1 | 236,14 | MB236.16 | MB 236,17 MB 236,7 | MB236.6 | MB236,5 | MB236.3
  • Mitsubishi Diaqueen ATF-J3 | Mitsubishi SP-II Mitsubishi SP-III
  • MOPAR AS68RC
  • Nissan 402 | A Nissan Matic-D/J/K
  • PSA AL-4
  • Renault DP0
  • Subaru ATF | Subaru ATF-HP
  • Suzuki 3314 | Suzuki 3317
  • Texaco ETL-7045E | Texaco ETL-8072B | Texaco N402
  • Toyota T | Toyota T-II | Toyota T-III | Toyota TIV
  • Volvo 1161540 | Volvo 1161640 | Volvo 4-Gear (P/N 1161621)
  • VW G 052 162 VW G 052 990 VW G 055 025
  • ZF TE-ML 09, 11 (3/4/5 gear)

Characteristics

  • Very good lubricating ability even at low temperatures in the Winter
  • High, stable viscosity index
  • Very low pour point
  • Very good oxidation stability
  • Protection against wear, corrosion and foaming
  • Excellent friction stability
  • High thermal and oxidative stability
  • Excellent cooling performance
  • Outstanding shear stability
  • Minimum Evaporation Losses
  • Neutral behaviour towards sealing materials
  • Neutral behavior by inhibition compared with non-ferrous metals

Technical specifications

 Properties  Data  unit  testing under
 Kinematic Viscosity at 100°C    7,2  MM²/S  ISO 51562-2
 viscosity index  153  ISO 2909
 Appearance  RED  visually
 Density at 15°C  846,0  KG/M³  DIN 51 757
 pour point  -45  °C  ISO 3016



All data given are approximate values and are subject to normal production fluctuations. To the best of our knowledge, all information corresponds to the current state of knowledge and our development. We reserve the right to make changes. All references to DIN standards are only used to describe the goods and do not constitute a guarantee. In the event of problems, request technical advice.
